Streaming Microphone Placement: 5-Step Audio Guide

Quick Answer: To properly position your microphone for streaming audio, place a dynamic microphone 2 to 4 inches from your mouth, or a condenser microphone 6 to 10 inches away. Angle the microphone 45 degrees off-axis, pointing toward the corner of your mouth to prevent harsh plosives. Mount the microphone on a suspended boom arm to isolate it from desk vibrations, and position your mechanical keyboard entirely within the microphone’s rear null point to reject typing noise.

Audio quality is the primary metric by which viewers judge the production value of a live stream. Upgrading your hardware is a standard step, but a premium microphone placed incorrectly will consistently underperform a budget microphone positioned with precision. The physics of sound capture dictate that placement directly influences your signal-to-noise ratio, the severity of room reflection, and the presence of unwanted mechanical interference.

Figuring out how to position microphone for streaming audio setups involves balancing three variables: the acoustic design of the microphone, the geometry of your desk space, and your natural posture while broadcasting. When you optimize these elements, you isolate your voice from the chaotic acoustic environment of a typical gaming or recording room.

This guide details a systematic approach to microphone placement. By mapping out your microphone’s polar pattern, establishing the correct physical distance, and applying acoustic isolation techniques, you can achieve broadcast-grade audio without requiring a soundproof studio.

Step 1: Identify Your Microphone’s Acoustic Profile

Before moving a single piece of equipment, you must identify two hardware specifications: the address type and the polar pattern. Misunderstanding these two factors is the root cause of most streaming audio issues.

Front-Address vs. Side-Address

Microphones capture sound based on where their internal capsule is oriented.

Front-address microphones require you to speak directly into the top or end of the cylinder. Common examples include the Shure SM7B, Electro-Voice RE20, and Rode PodMic. If you speak into the side of a front-address microphone, the sound will be thin, distant, and heavily muffled.

Side-address microphones require you to speak into the flat side of the chassis. The Blue Yeti, Elgato Wave:3, and Audio-Technica AT2020 are side-address models. A frequent error among new streamers is pointing the top tip of a side-address microphone toward their mouth, which pushes their voice almost entirely off-axis and degrades the signal.

Polar Patterns and the “Null Point”

The polar pattern dictates where the microphone listens and, more importantly, where it ignores sound.

Most streaming microphones utilize a Cardioid polar pattern. A cardioid pattern captures sound in a heart shape directly in front of the capsule while aggressively rejecting sound from the direct rear (180 degrees). This rear rejection zone is called the “null point.”

If you use a Supercardioid microphone (like the Razer Seiren V2 Pro), the pattern is tighter in front, but it has a small node of sensitivity at the direct rear. The null points on a supercardioid microphone are actually located at roughly 120 degrees and 240 degrees off-axis.

Knowing exactly where your microphone is “deaf” is the foundation of proper positioning.

Step 2: Establish the Optimal Distance

The distance between your mouth and the microphone capsule dictates your gain staging. Following the inverse square law of acoustics, every time you double the distance from the sound source, the sound pressure level drops by 6 decibels (dB). Consequently, moving the microphone further away forces you to increase the digital or analog gain, which simultaneously amplifies keyboard clicks, PC fan whine, and room echo.

Guidelines for Dynamic Microphones

Dynamic microphones are relatively insensitive and excel at rejecting background noise, making them ideal for untreated rooms. However, this lack of sensitivity means they must be positioned very close to the sound source.

If you are using a dynamic microphone, position the capsule between 2 to 4 inches (5 to 10 centimeters) from your mouth. A standard rule of thumb is to place the width of three to four fingers between your lips and the grille.

At this distance, you engage the “proximity effect,” a physical phenomenon where low-frequency bass response increases as the sound source gets closer to a directional capsule. This provides the rich, authoritative “broadcast voice” highly sought after in streaming.

Guidelines for Condenser Microphones

Condenser microphones are highly sensitive and capture a wider frequency range, picking up nuances in your voice but also environmental noise.

If you are using a condenser microphone, position the capsule roughly 6 to 10 inches (15 to 25 centimeters) from your mouth. A common measurement tool is the “shaka” sign or a fully extended hand spanning from your thumb to your pinky finger. Place your thumb on your chin and your pinky on the microphone grille to establish the baseline distance.

Positioning a condenser closer than 6 inches often results in an overloaded capsule and severe distortion when you raise your voice during high-energy moments on stream.

Step 3: Dial In the Perfect Angle

Once the distance is set, the angle of the microphone determines the clarity of the recording. Speaking dead-center into a microphone capsule guarantees maximum frequency capture, but it introduces a severe mechanical problem: plosives.

Defeating Plosives and Sibilance

Plosives are bursts of low-frequency air caused by articulating hard consonants, primarily “P,” “B,” and “T” sounds. When this concentrated column of air impacts the microphone diaphragm dead-on, it bottoms out the capsule, creating a loud, distorted thumping noise that viewers find jarring. Sibilance is a similarly harsh high-frequency hissing caused by “S” and “Sh” sounds.

To prevent both, apply the 45-degree off-axis rule.

Offset the microphone slightly to the left or right of your face, and angle the capsule inward so it points toward the corner of your mouth rather than the center of your lips. When you execute this correctly, the disruptive bursts of air from plosive consonants will shoot straight forward, passing safely past the microphone, while the acoustic sound waves of your voice still hit the capsule perfectly.

Elevation and Nasality

You can also apply this offset vertically. Positioning the microphone slightly above your mouth and angling it downward (pointing at your nose/upper lip) naturally reduces nasal frequencies and captures a brighter sound. Conversely, placing the microphone slightly below your mouth and angling it upward (pointing at your chin/chest) captures more chest resonance, resulting in a deeper, thicker sound.

Choose the vertical angle that best complements your natural vocal register, but maintain the off-axis offset to protect the capsule from direct air impact.

Step 4: Manage Desk Mechanics and Mounting

A desk stand is the enemy of clean audio. When your microphone shares a hard surface with your keyboard and mouse, every keystroke, mouse flick, and desk bump travels as a physical vibration directly through the stand and into the microphone chassis. This mechanical coupling ruins otherwise perfect audio setups.

Deploying a Boom Arm

Removing the microphone from the desk surface is a mandatory requirement for high-quality streaming audio. A suspended boom arm serves two functions: it provides structural isolation from desk vibrations, and it allows for precise, repeatable positioning that adapts to your posture.

When setting up your boom arm:

1. Clamp the base to a sturdy, non-flexing section of the desk.
2. Route the XLR or USB cables along the metal channels of the arm to prevent cable tension from altering the microphone’s position over time.
3. Leave enough slack near the microphone joint to allow for full rotation and angle adjustments.

Low-Profile vs. Traditional Arms

Traditional broadcast arms articulate from a high angle, coming down over your monitors. These are effective but can visually clutter your stream framing.

Low-profile boom arms shoot under your monitors and rise up horizontally. These are highly recommended for streamers using side-address condenser microphones or lightweight dynamic microphones, as they keep the hardware out of the camera’s line of sight while easily reaching the required 6-to-10 inch distance.

The Role of Shock Mounts

Even with a boom arm, intense typing can vibrate the arm’s base. A shock mount isolates the microphone within an elastic or rubber suspension web. If your microphone does not have internal capsule suspension (like the SM7B does), securing an external shock mount is essential. It acts as the final physical filter between mechanical desk noise and your broadcast.

Step 5: Treat the Surrounding Geometry

Your microphone positioning must work in tandem with the physical objects in your recording space. Even perfect microphone angles will fail if the desk geometry creates reflection points or positions noise sources incorrectly.

Exploiting the Null Point for Keyboards

Return to the concept of your microphone’s polar pattern. If you are using a standard cardioid microphone, the point of maximum sound rejection is exactly 180 degrees opposite the front of the capsule.

Position your mechanical keyboard precisely in this null space. When you angle your microphone 45 degrees toward your mouth, the rear of the microphone should be pointing downward and outward directly toward the center of your keyboard. By forcing the loudest object on your desk into the microphone’s deafest listening angle, you achieve massive mechanical noise reduction without needing aggressive digital noise gates.

If using a supercardioid microphone, remember that the exact rear (180 degrees) will pick up a small amount of sound. Position the keyboard slightly offset to hit the true null zones at 120 or 240 degrees.

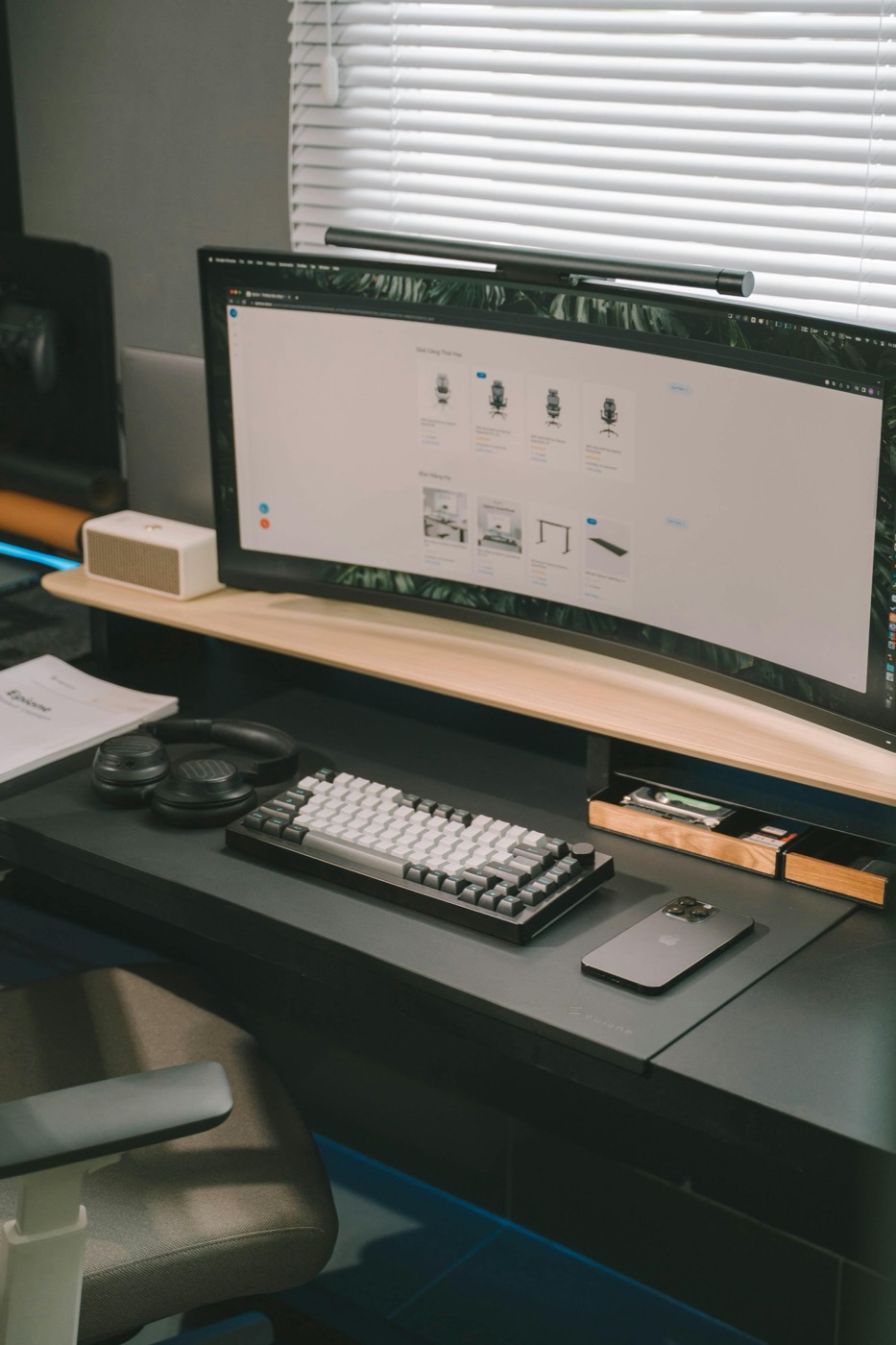

Managing Monitor Reflections

Computer monitors act as flat acoustic mirrors. If your microphone is too close to a monitor, your voice will travel past the microphone, bounce off the glass screen, and hit the microphone capsule a fraction of a millisecond later. This creates “comb filtering,” resulting in a hollow, robotic, or echoing sound.

Ensure your microphone is positioned closer to your mouth than it is to any flat surface. If your boom arm is pushing the microphone directly against the lower bezel of your main monitor, adjust the tension to bring it forward into open air.

Practical Advice: Configurations for Popular Streaming Mics

Different hardware requires distinct approaches. Here are exact positioning parameters for the most common streaming microphones on the market.

Shure SM7B (Dynamic, Front-Address, Cardioid)

• Distance: 2 to 3 inches.
• Orientation: Point the flat foam end directly at your mouth.
• Angle: Offset horizontally by 30 to 45 degrees to avoid heavy plosives, utilizing the thicker A7WS windscreen if you prefer an on-axis position.
• Keyboard Position: Directly behind the rear chassis of the microphone.

Blue Yeti / Logitech Yeti (Condenser, Side-Address, Multi-Pattern)

• Distance: 6 to 8 inches.
• Orientation: Set to Cardioid mode. Stand the microphone completely vertically. Speak into the front logo, never the domed top.
• Angle: Offset slightly to the left or right, angled toward the mouth. Keep the gain dial below 30% to prevent background noise capture.
• Keyboard Position: Directly behind the rear logo.

Elgato Wave:3 (Condenser, Side-Address, Cardioid)

• Distance: 7 to 9 inches.
• Orientation: Vertical, speaking into the flat front grille.
• Angle: Offset 45 degrees, combined with a pop filter (as the Wave:3 capsule is highly sensitive to fast air transients).
• Keyboard Position: Hidden directly in the 180-degree rear null.

Rode PodMic (Dynamic, Front-Address, Cardioid)

• Distance: 2 to 4 inches.
• Orientation: Point the flat metal grille at the mouth.
• Angle: Slightly off-axis. The PodMic has an internal pop filter, but a 45-degree angle will prevent moisture buildup on the metal chassis during long streams.
• Keyboard Position: Directly behind the XLR connection point.

Final Setup Checklist

Mastering how to position microphone for streaming audio requires precision, not guesswork. Before going live, run through this final diagnostic:

1. Verify Address Type: Are you speaking into the correct part of the chassis?
2. Check Distance: Are you within 4 inches for dynamic, or 10 inches for condenser?
3. Confirm Angle: Is the capsule pointed at your mouth, but physically offset from the direct path of your breath?
4. Isolate Hardware: Is the microphone removed from the desk surface using a boom arm?
5. Hide the Noise: Is your keyboard hidden in the exact rear null point of the polar pattern?

When you meet all five conditions, you optimize your signal-to-noise ratio at a physical level. This yields a clean, professional raw audio signal, ensuring that any subsequent digital processing, equalizers, or compression plugins have pristine data to work with.

Frequently Asked Questions

Should my microphone be upside down?

Mounting a microphone upside down is primarily an aesthetic choice for streamers. It clears up desk space and prevents the microphone body from blocking the view of the bottom half of your computer monitors. Acoustically, the capsule functions identically whether right-side up or upside down, provided it remains aimed at your mouth.

How do I stop my microphone from picking up my keyboard?

First, mount the microphone on a boom arm to stop physical vibrations from traveling through the desk. Second, place the keyboard directly behind the microphone within its “null point” (the zone where it rejects sound). Finally, move the microphone closer to your mouth and lower the input gain, which makes your voice louder while pushing the keyboard noise into the background.

Is it better to have the microphone above or below my mouth?

Either position works well, provided you angle the capsule back toward your mouth. Placing the microphone slightly above your mouth and pointing it down tends to capture a clearer, less nasal sound and keeps the hardware entirely out of your keyboard space. Placing it below the mouth captures slightly more low-end chest resonance but risks picking up more desk noise.

What is a side-address microphone?

A side-address microphone is designed so that the internal capsule picks up sound from the flat, vertical side of the chassis rather than the top tip. Popular examples include the Blue Yeti, HyperX QuadCast, and Audio-Technica AT2020. You must speak into the front-facing logo of these microphones, not the top dome.

Do I need a pop filter if my microphone is angled correctly?

If you maintain a strict 45-degree off-axis angle, the bursts of air from your mouth will physically miss the capsule, rendering a pop filter largely unnecessary. However, if you have a highly energetic streaming style and tend to lean forward or move directly on-axis during intense gaming moments, a pop filter acts as a reliable safety net against audio distortion.
